Product Info
| Product size | 25m*5m*4m(for reference only) |
| Product structure | Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker. |
| Control system | PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor |
| Drive system | Semi Servo Drive, timing belt and flat belt are import products, and all the key parts, are import bearings. |
| Tension system | Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B
shaft active unwinding by inverter motor. |
| Safety system | It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer. |
| Packaging system | according to customer requirements with palletizer machine (double push double exit ) adjustable |
| Materials corrective system | Materials corrective system: Adopt international famous brand deviation correction system |
| Power | 380V, 50HZ three phase five wire |
| Machine Capacity | 230KW (Excluding glue machine and air compressor) |
| Bleed pressure | 0.6-0.8Mpa (Air compressor needs to be prepared by customers) |
| Machine weight | 70 Tons approximately |
The production line includes:
Pulp crusher system
SAP feeding system
Drum forming system
Lower tissue paper feeding system
SAP paper feeding system
Core wrapping system
Perfume feeding system
Mat cutting system
Hydrophobic non woven feeding system
Hydrophilic non woven feeding system
Flow cannel embossing system
Side sealing system
PE film feeding system
Back release paper feedig & cutting system
Outer cutting system
Edge scrap collecting system
180 degree transfer system
Wing release paper feeding & cutting system
90 degree transfer system
Packing film feeding system
Product seal cutting system
Easy tape feeding & cutting unit
Out put rejection system
Technical features:
* Compact design, easy operation & maintenance
* Modular design, for future upgrading
* Low consumption, high efficiency
* Servo or frequency inverter transmission
* Touch screen for man-machine conversation
* Auto record and calculation of process data
* Main raw material auto splicing at zero speed
* Inverter or servo unwinding with tension control
* Web guiding controller
* Sensor quality control systems
* Material broken and lost inspection, auto machine stops and defective products auto rejection
* Easy size changing and manufacture

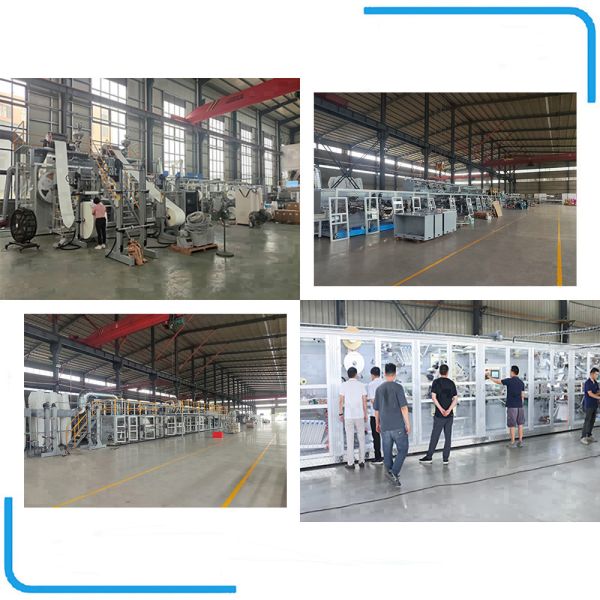

Machine Panoramic Image

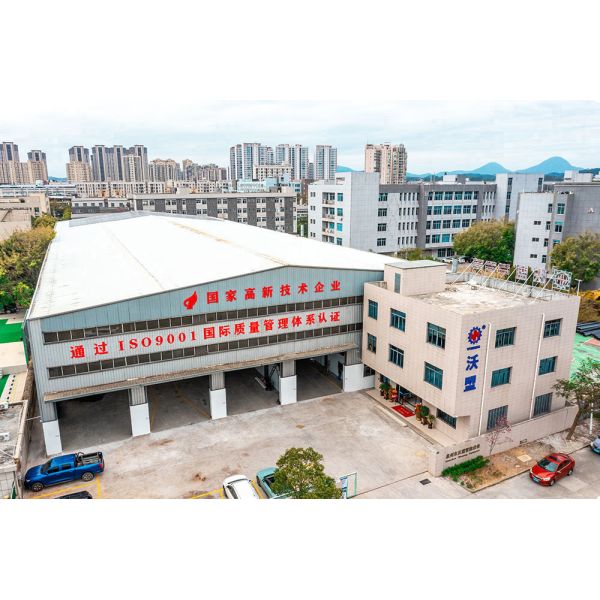

Quanzhou Womeng Intelligent Equipment Co., Ltd. is a trusted diaper production machine line manufacturer, established in 2016 in Quanzhou—East Asia’s cultural hub and the origin of the Maritime Silk Road. We focus on the development, production, and sales of high-efficiency diaper machines and related equipment.

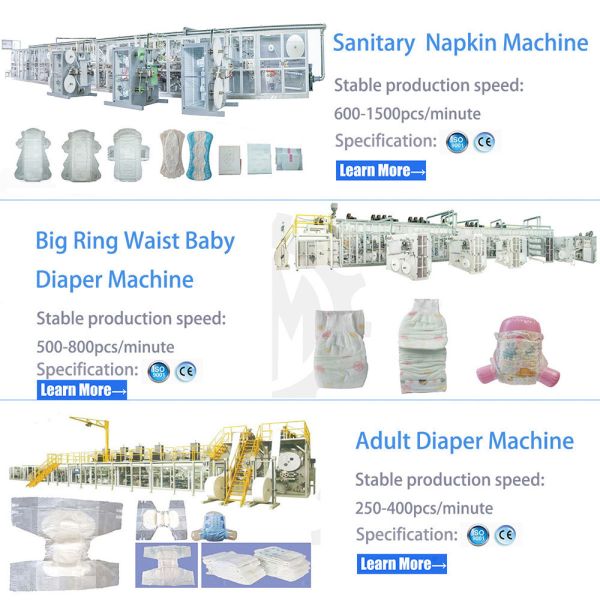

Our main products include nappy making machine, adult diaper machine, menstrual pad machine, and diaper packaging machine, along with sanitary napkin, pant diaper, mattress, and pad production lines.
With a skilled team and modern facilities, Womeng customizes each diaper making machine to meet specific market needs, ensuring stable performance and quality output. We’re committed to providing both excellent equipment and professional technical support to clients worldwide.
Whatsapp: +008615805080212
Email:jessie@wm-machinery.com
https://www.diapersmachines.com
Adapt to the characteristics of infants in the region and enhance the market competitiveness of the product
Cater to the needs of different body types: Parameters can be fine-tuned according to the body type characteristics of infants in the target market. For instance, if infants in Europe and America tend to be more robust, the elastic range of the elastic waist circumference can be optimized (with a stretch rate of 150%-180%) to avoid marks caused by compression. Babies in East and Southeast Asia tend to be smaller and thinner. To ensure a good fit and avoid wasting raw materials, the width of the crotch can be reduced and the length of the core can be adjusted. There is no need to customize new molds. It can be achieved simply by adjusting the parameters of the servo system, enhancing the local adaptability of the product.
In response to regional climate and usage habits: For tropical high-humidity regions (such as Southeast Asia and the Middle East), optimize the perforation density of the breathable bottom film, adjust the core water retention process, and reduce the red bottom caused by stuffiness. For high-latitude and cold regions, it is suitable for thickened pile paste core, optimizing the softness of the surface layer to prevent the fabric from hardening and rubbing against the skin in low temperatures. Supports quick switching between "daytime light and thin version + nighttime thick version", catering to the feeding and sleeping habits of parents in different regions.
Strengthen production stability and reduce operational risks
Ensure product consistency: The full servo system with electronic axis synchronous control ensures that the parameter error of each process (fabric conveying, core positioning, cutting) is ≤±0.3mm. The size, elasticity and absorption performance of each diaper are highly uniform, avoiding quality fluctuations caused by manual operation. It is suitable for chain baby and maternity stores and medical procurement orders with high standardization requirements, facilitating stable and long-term cooperation.
Strong ability to handle unexpected situations: Equipped with a power-off memory function, it can automatically restore production parameters after a brief power outage and restart, avoiding batch scrapping. Fault early warning is set at key parts. When the fabric deviates or the core is short of material, the machine will immediately stop and sound an alarm to reduce the generation of waste. To address the issue of unstable raw material batches, the conveying speed and pressure can be fine-tuned to accommodate minor quality differences of raw materials and ensure continuous production.
